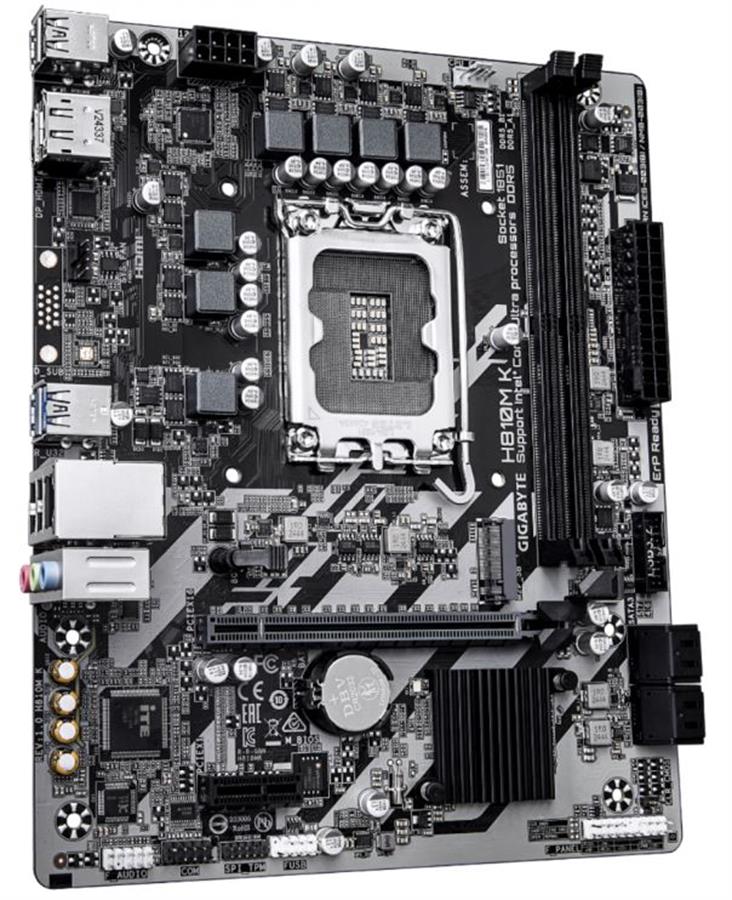

Mother GIGABYTE H810M K DDR5 Socket 1851 Ultra

Cod #509938
Marcas GIGABYTE
Stock STOCK BAJO
socket 1851 Memoria DDR5 para Micros Intel ULTRA
  • Procesador
    LGA1851 socket: Support for Intel® Core™ Ultra Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
    L3 cache varies with CPU
  • Chipset
    Intel® H810 Express Chipset
  • Memoria
    Support for DDR5 6400/5600 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Gráficos Integrados
    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz

    * Support for DisplayPort 2.1 version.


    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.


    (Graphics specifications may vary depending on CPU support.)
  • Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN
    Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  • Puertos de Expansión
    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.


    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
  • Interfaz de Almacenamiento
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Conectores Internos de E/S
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x Clear CMOS jumper

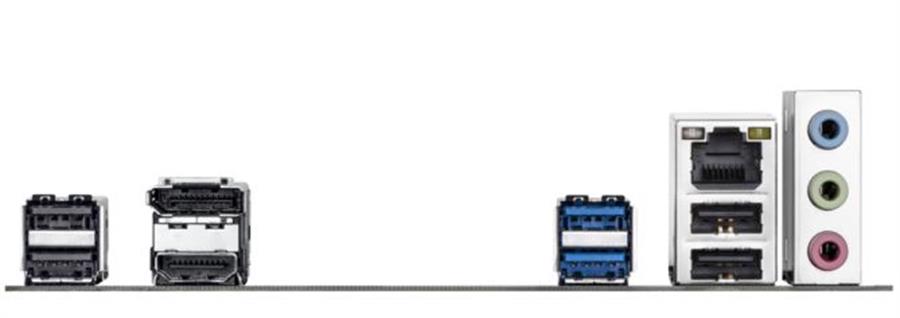

  • Conectores del Panel Trasero
    1 x DisplayPort (Note)
    1 x HDMI port (Note)
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks

    (Note) Actual support may vary by CPU.
  • Controlador de E/S
    iTE® I/O Controller Chip
  • Monitorización H/W
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Características Únicas
    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Smart Backup
  • Software Incluido
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Sistema Operativo
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit

    * The Intel® NPU driver is only supported on Windows 11.

  • Diseño
    Micro ATX Form Factor; 22.6cm x 18.5cm
