| Cod | #133037 |
|---|---|
| Marcas | THERMALTAKE |
| Stock | DISPONIBLE |
| P/N |

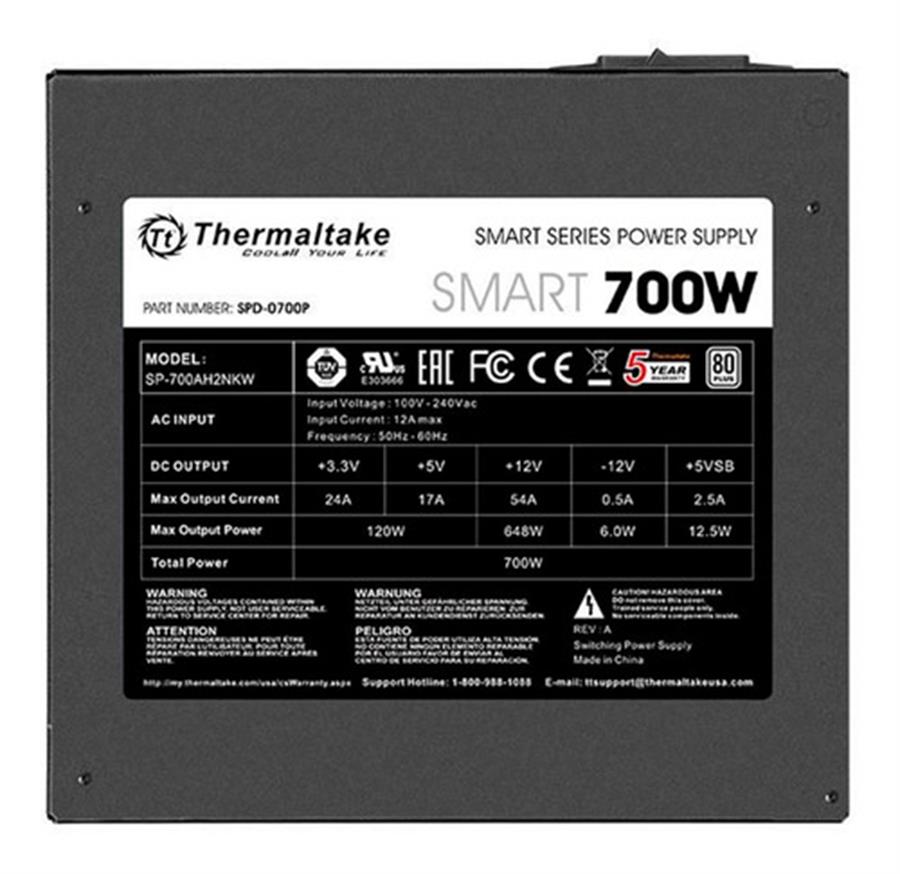

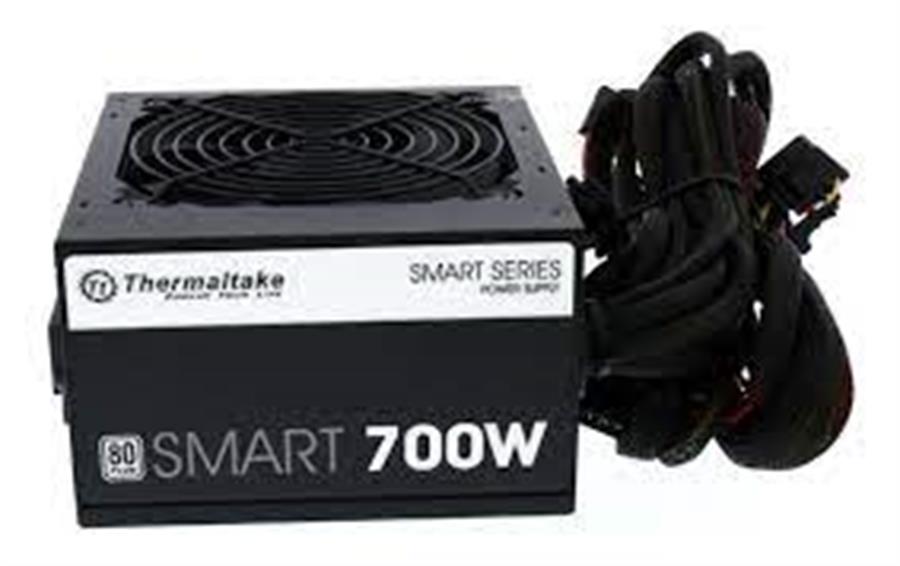

PS-SPD-0700NPCW**-W |
| Short P/N |
SPD-0700P |
| Model |
SP-700AH2NKW |
| Type |
Intel ATX 12V 2.3 |
| Max. Output Capacity |
700W |
| Color |
Black |
| Dimension (H x W x D) |
86mm x 150mm x 140mm |
| PFC (Power Factor Correction) |
Active PFC |
| Power Good Signal |
100-500 msec |
| Hold Up Time |
16msec (minimum) within 60% load |
| Input current |
12A max |
| Input Frequency Range |
50 Hz - 60 Hz |
| Input Voltage |
100Vac - 240Vac |
| Operating Temperature | 5℃ to +40℃ |
| Operating Humidity | 20% to 85%,non-condensing |
| Operating Temperature |
-40 ℃ to +55 ℃ |
| Operating Humidity |
10% to 95%, non-condensing |
| Cooling System | 120mm Fan: 1800 R.P.M. ± 10% |
| Efficiency |
80-87% efficiency @ 20-100% load |
| MTBF |
100,000 hrs minimum |
| Safety Approval |
CE/CB/TUV/ UL/ FCC |
| PCI-E Connector |
PCI-E 6+2pin x 2 |
